Screeds
SMOOTHNESS FEATURES.
A rigid frame and balanced weight design prevents flexing and easily adjustable bolt-on screed extensions provide optimal smoothness for fixed width paving.

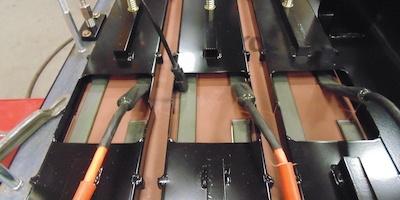

FAST HEATING ELEMENTS.
675V heating elements provide 20 minute heat up time. U-shaped elements reduce cold spots while zone monitoring allows heating to continue in the event of a sensor failure. Main screed elements replaceable without removing the screed plate.

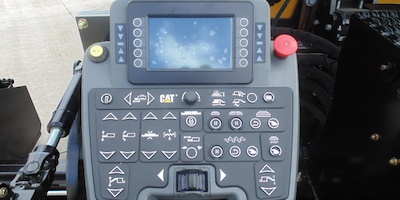

ADVANCED CONTROL.
Cat® F-Series controls integrate seamlessly with the paver. Monitor screed heat, adjust feeder system ratios and integrated Cat® Grade and Slope control system are easily accessible from the backlit, water resistant LCD display.
OPERATOR FRIENDLY.
Controls are conveniently located and easily recognizable. 18.5” (470 mm) wide folding walkway with extensions, dual side 4’ (1.2 m) level holders, built-in cup holders and lockable tool box.

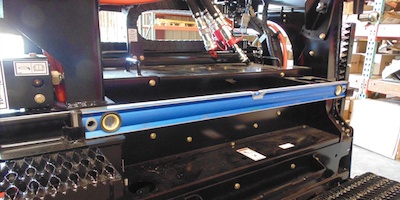

STRIKE-OFF ADJUSTMENT.
33” (383 mm) strike-off plate travel on the SF8F and 45” (1143 mm) strike-off plate travel on the SF10F provides pre-compaction and effective material flow.
FAST SERVICE.
Electronic Control Module simplifies troubleshooting procedures. Sealed, flexible guards protect hoses and wiring while easy component access and Caterpillar dealer service and support keep your machine up and running with limited down time.
| Specifications | |
|---|---|
| Standard Paving Width | 10' (3.05 m) |
| Max. Paving Width | 24' (7.32 m) |
| Strike-Off Plate Travel | 45" (114 cm) |
| Length w/o End Gates | 52" (1.32 m) |
| Length w/ End Gates | 82" (2.08 m) |
| Height | 103" (2.62 m) |
| Width w/o End Gates | 10' (3.05 m) |
| Width w/ End Gates | 10' 8" (3.25 m) |
| Screed Weight | 6,800 lb (3085 kg) |
| Screed Plate Width | 32" (813 mm) |
| 1' (305 mm) Extension Weight | 280 lb (127 kg) |
| 18" (450 mm) Extension Weight | 360 lb (163 kg) |
| 2' (610 mm) Extension Weight | 440 lb (200 kg) |
