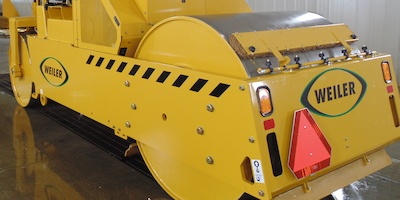

Compactors
RANGE OF APPLICATIONS.
When static compaction is required, the
7 ton (6.35 mt) and 10 ton (9 mt) models
perform in a wide range of applications
from highway construction to driveways,
base to finish layers. Linear force is easily
adjusted by adding or reducing ballast in
the drums.

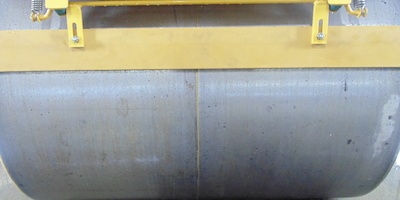

SPLIT FRONT DRUM.
The 50” (1270 mm) split front drum
enables the outer half of the drum to
rotate faster than the inner half resulting
in quick work on corners and curves,
without mat tearing.

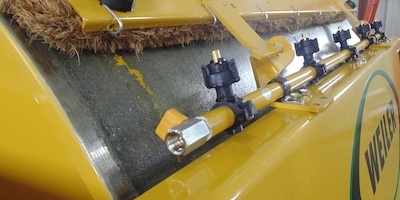

PRESSURIZED WATER SPRAY.
Two (2) 100 gal (378 L) tanks supply the
pressurized feed system with eight (8)
intermittent spray settings. Five (5) nozzles
and cocoa mats on the front and rear drums
provide optimal drum coverage

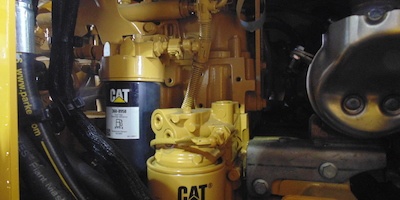

POWER TO PERFORM.
A Cat® C3.4B Tier 4F engine with 74 hp (55
kW) powers both the C307A and C310A to
a maximum speed of 10.5 mph (16.9 km/hr)
with a 12’ 6” (3.8 m) inside turning radius.

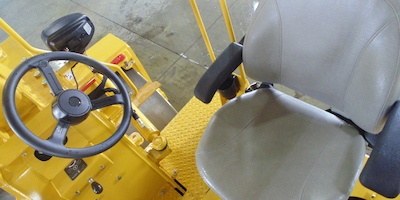

VISIBILITY AND CONTROL.
Dual seats with 5-position pivot steering
wheel and low profile hood design enhance
operator sight lines. Controls within easy
reach of the operator and optional airsuspension
seat help reduce fatigue.

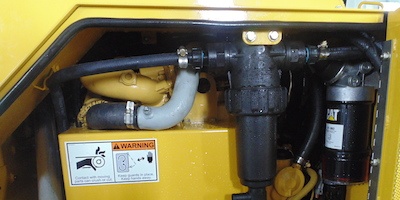

FAST SERVICE.
Plastic fuel tank prevents rusting. Spray
nozzles and filters are easily removable by
hand. Extended life water pump. Routine
service and grease locations are easily
accessible.
| Specifications | |
|---|---|
| Height | 271 cm (106.7") |
| Length | 472 cm (185.7") |
| Width | 152 cm (63.6") |
| Ground Clearance | 29 cm (11.25") |
| Wheel Base | 335 cm (132") |
| Rear Drum Diameter | 135 cm (53") |
| Front Drum Width | 127 cm (50") |
| Rear Drum Width | 127 cm (50") |
| Front Drum Oscillation (each way) | 21 |
| Front Drum Oscillation in Maximum Turn (Each Way) | 2 |
| Maximum Turn Angle (Each Way) | 45° |
| Inside Turning Radius | 12' 6" |
| Outside Turning Radius | 19' 9" |
| Engine | Cat® 3.4B Tier 4F, 74 hp (55 kW) |
| Fuel Capacity (gal) | 159 L (42 gal) |
| Low Range Speed (mph) | 8.4 kph (5.25 mph) |
| High Range Speed (mph) | 16.9 kph (10.5 mph) |
| Hydraulic Tank Capactiy | 87 L (23 gal) |
| Pump Type | Closed Loop |
| Motor Type | Radial Piston |
| Water Pump Type | Diaphram |
| Tank Fill Filtration | 100 Mesh |
| Suction Filtration | 100 Mesh |
| Nozzle Quantity | 5 frt, 5 rear |
| Tank Capacity | 756 L (200 gal) |
