Windrow Elevators
BUILT FOR HIGH PRODUCTION.
High-slat entry tackles tall windrows with 60” (1524 mm) wide conveyor throat and 600 tph (544 mtph) capacity. 3-point suspension and adjustable scrapers ensure a clean path for the elevator and paver.
RELIABLE POWER.
The Cat® C4.4 Tier 4F/Stage V engine with 137 HP (102 kW) produces clean, quiet power. The elevator is powered by a high-torque, direct drive motor which eliminates a gearbox and is kept cool by a loop flush return system.
SIMPLE CONTROLS.

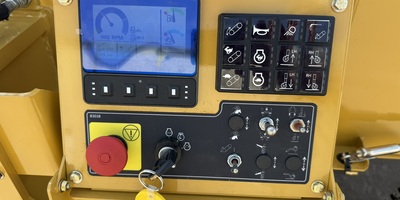

Operating controls are located on the left side of the machine with easy-to-access chain speed and direction control. Variable hydraulic drive system allows the speed of the elevator to match material and production requirements.

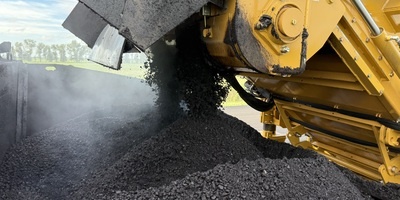

REMIXING DISCHARGE HOPPER.
The optional remixing discharge hopper provides consistent material mix to the paver with independent doors to control material flow and hydraulically moves into and out of position.
TRANSPORT AXLE.
The optional transport axle simplifies transportation of the E650D or E550D windrow elevator at highway speeds. The axle quickly pins on and off the elevator and includes a hydraulic tongue for convenient hook-up to the tow vehicle.
FAST SERVICE.

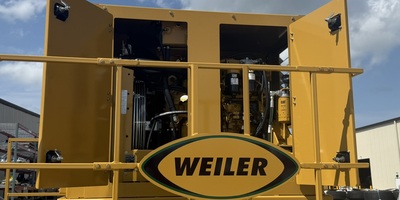

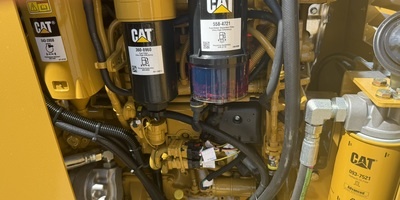

Two large doors and a large platform allow easy access to the engine compartment. Electronic controller provides machine conditions, diagnostics and calibrations. Caterpillar dealer service, support and inventoried parts help keep the machine up and running.
| Specifications | |
|---|---|
| Weight | 19,600 lb (8890 kg) |
| Height | 124" (3,150 mm) |
| Length | 230" (5,842 mm) |
| Length w/ Raised Towing Frame | 188" (4,775 mm) |
| Width w/ Wings In | 122" (3,099 mm) |
| Width w/ Wings Out | 184" (4,674 mm) |
| Engine | Cat® 4.4 Tier 4F/Stage V |
| Horsepower | 137 hp (102 Kw) |
| Throat Width | 60" (1,524mm) |
| Elevator Slat Width | 58" (1,473 mm) |
| Elevator Slat Depth | 7" (179 mm) |
| Combining Auger Diameter | 29" (737 mm) |
| Discharge Height | 84" (2,134 mm) |
| Front & Rear Wheel Cylinder Lift | 8" (203 mm) |
| Front Tire Size | 22" x 7" (559 mm x 178 mm) |
| Rear Tire Size | 235/75/17.5 |
| Fuel Capacity | 80 gal (303 L) |
| Hydraulic Capacity | 20 gal (76 L) |
