Tack Distributors
POWER TO PUMP.
Weiler tack distributors are powered by a
5.5 hp (4.1 kW) Kohler engine with electric start
option. The direct-drive pump is designed
for asphalt with a capacity of 10 gpm (38
L/min).

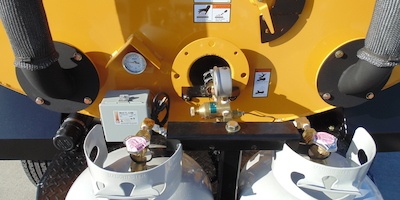

HIGH BTU BURNER.
The 300,000 BTU burner provides quick
heating times. Dual propane tanks provide
extended use between changes and the
push button ignitor simplifies the lighting
process.
SPRAY WAND.
The 5’ 6” (1.7 m) spray wand and 50’ (15 m)
hose reel provide optimal coverage range for
tight jobsites.
FOLD-ABLE SPRAY BAR.
The optional spray bar folds from 6’ (1.8 m)
to 9’ (2.7 m) and features 7 independently
controlled nozzles for optimal coverage. The optional wireless remote for the
spray bar allows operation away from the
machine.
SIMPLE OPERATION.
Numbered valves and valve operation
decals clearly specify machine setup for
warmup/recirculation, spray, reclaim and
cleanout operations.

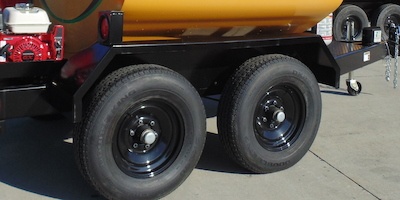

HEAVY DUTY TRAILER.
4,000 lb (1815 kg) GVWR trailer for the
TT250 and 7,200 lb (3447 kg) GVWR trailer
for the TT500 feature either ball or pintle
hitch, electric brakes, emergency breakaway
brake system, safety tow chains and
pre-wired 6-pin connector.
| Specifications | |
|---|---|
| Tank Capacity | 250 gal (946 L) |
| Shipping Weight | 1,850 lb (839 kg) |
| Working Weight | 4,000 lb (1814 kg) |
| Length | 120" (3 m) |
| Width | 78" (198 cm) |
| Height | 80" (203 cm) |
| Axle Capacity | 4,000 lb (1815 kg) |
| Burner | 1 x 300,000 BTU |
| Temperature Range | 0 - 250 F (-20 - 120 C) |
| Engine | Kohler |
| Horsepower | 5.5 HP (4.1 kW) |
| Pump | Viking Direct-Drive |
| Pump Output | 11 GPM |
| Spray Wand | 5' 6" (168 cm) Single Nozzle |
| Hose Reel | 50' (15 m) |
| Flush Tank | 13 gal (49 L) |
| Hitch | Ball or Pintle |
| Braking | Electric Break-Away System |
