Commercial Pavers
![](/upl/images/content-blocks/5dbae338019ea31263d69-39519655.jpg)
GRAVITY FEED HOPPER.
The gravity fed 6-ton (5.4 mt) hopper
features an hydraulically raised floor and
wings with two independently operated
hydraulic cut-off doors for exceptional
material management.
![](/upl/images/content-blocks/5dbae3380241a47f7713-576ab781.jpg)
ELECTRIC SCREED HEAT.
The Weiler designed screed delivers
outstanding mat quality and a standard
paving range of 7’ 8” (2.3 m) to 13’ (3.35
m). Four heating elements and optional
heated end gates are powered by an
hydraulically driven 12 kW generator.
![](/upl/images/content-blocks/5dbae33802e8a54b3367f-c200d5b5.jpg)

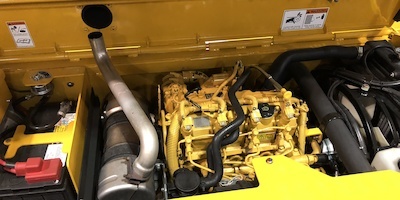

POWERTRAIN.
A Cat© C2.2 Tier 4 engine provides 49 hp (36
kW) and powers a 2-speed hydrostatic drive
with 180 fpm (55 m/min) max paving speed
and 300 fpm (91 m/min) max transport speed.
![](/upl/images/content-blocks/5dbae338039888934547-953c11d9.jpg)

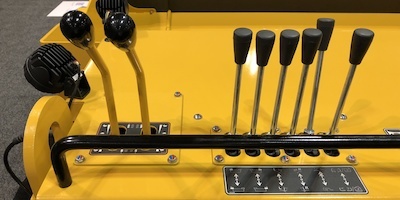

SIMPLE OPERATION.
Dual side operation with manual ground
drive controls, independent augers with
reverse and color LCD display providing
machine conditions and diagnostics.
![](/upl/images/content-blocks/5dbae338043fa21a1e053-ed10892f.jpg)
DURABLE UNDERCARRIAGE.
The undercarriage features 55” (1397 mm)
track length with 39” (990 mm) of ground
contact, 12” (305 mm) steel track pads, a
sprocket driven 125 mm track chain pitch
and automatic track tensioning.
![](/upl/images/content-blocks/5dbae33804e1c539ec7c6-47add0f2.jpg)
FAST SERVICE.
Remote grease lines, spray down system
with 7 gal (26 L) tank and coiled hoses,
large engine access door and Caterpillar
dealer service and support keep your
machine up and running with limited down
time.
Specifications | |
---|---|
Weight | 12,600 lb (5715 kg) |
Length | 9' 9" (2.97 m) |
Width | 98" (2.48 m) |
Height | 70" (1.78 m) |
Truck Clearance | 20.75" (557 mm) |
Auger Diameter | 9" (229 mm) |
Screed Weight | 2,100 lb (952 kg) |
Main Plate Width | 13" (330 mm) |
Extension Plate Width | 7" (178 mm) |
Screed Heat | Electric - 4 elements |
Vibration | 1 x 2500 vpm |
Max Auger Speed | 125 rpm |
Engine | Cat® C2.2 Tier 4F |
Paving Speed | 180 fpm (55 mpm) |
Transport Speed | 300 fpm (91 mpm) |
Fuel Capacity | 25 gal (94 L) |
Hydraulic Capacity | 22 gal (83 L) |
Spray Down Capacity | 7 gal (26 L) |
